211 Master Belt Scale Weigh Frame

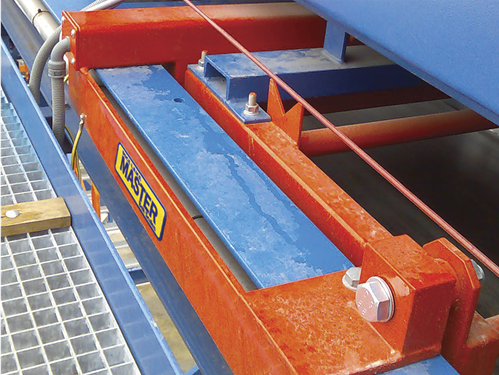

The 211 Master belt scale weigh frame consists of an inner frame-mounted with two friction-free pivots to one end of the scale. The load cell is located on the opposite end with the idler mounted on the inner frame. The friction-free pivots absorb tensile stress in a horizontal direction, creating a very solid weigh frame well-suited for heavy-duty applications.
Conveyor Width: Capacity: Maximum Belt Speed: | Maximum Inclination: Material: Accuracy System: | Load Cell: RL20001 alloy steel, S-beam (capacity selected from application) |
- 304/316 Stainless steel
- Dual load cells
- Dual idler
- Custom lifting weights available on request
- Medium to heavy capacity, mining and agriculture
